The Ermenrich Zing TC27 digital multimeter is used for testing electrical equipment and electrical circuits. Its broad functionality allows you to use it not only at home but also for professional work. The multimeter is an excellent choice for engineers, electricians, repairmen, and other technicians. The Ermenrich Zing TC27 multimeter is a True RMS device that guarantees highly accurate measurements of non-sinusoidal signals.
The multimeter has 7 basic functions: It measures DC and AC voltage, DC and AC current, resistance, frequency, capacitance, duty cycle, and temperature. A thermocouple-based sensor is used for temperature measurement. The Smart function allows you to measure some basic quantities without having to manually adjust the multimeter: This function will automatically recognize the signal.

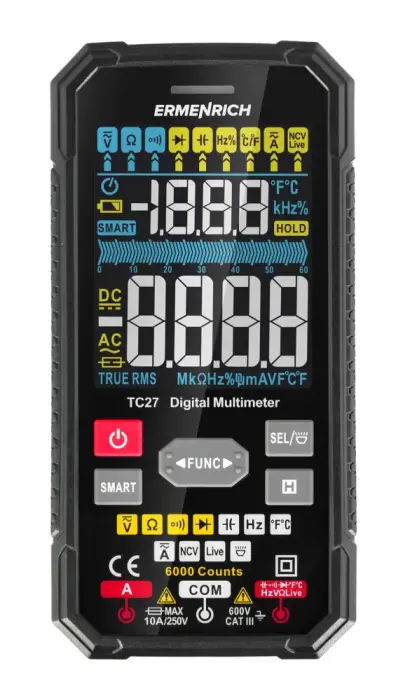

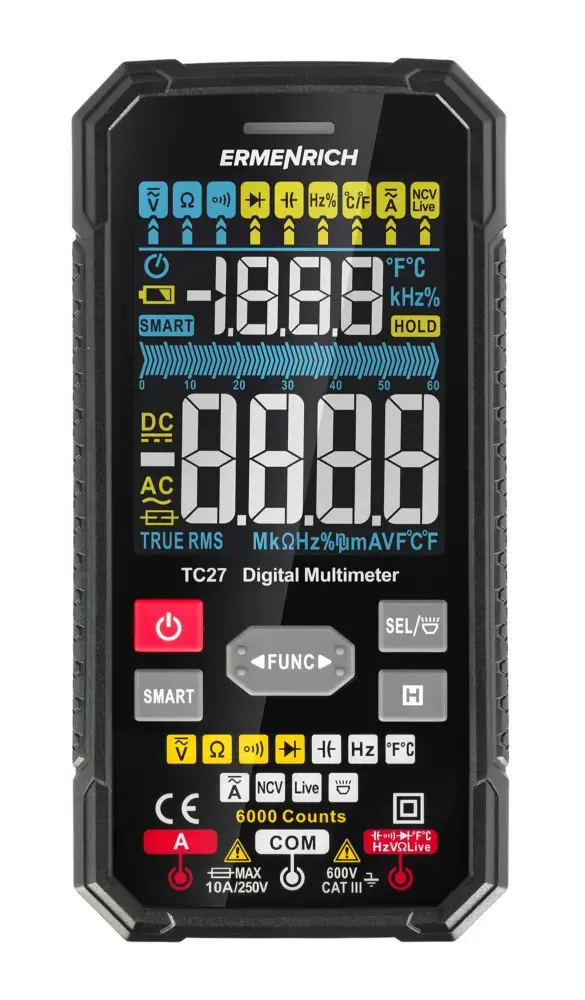

The multimeter can locate open and short circuits, test diodes, and determine the phase. All of the readouts are displayed on the large backlit color screen - as digits and a graphic scale. There is a hold function available. The device is powered by standard batteries.
Key features:
- True RMS calculations
- The functions of a voltmeter, ammeter, ohmmeter, capacitance meter, frequency meter, duty cycle meter, and a thermocouple sensor are combined in just one tool
- Smart function – automatic signal recognition (resistance, voltage, and continuity test)
- Non-contact NCV high voltage detector, phase detection (Live), diode test, continuity test, hold function

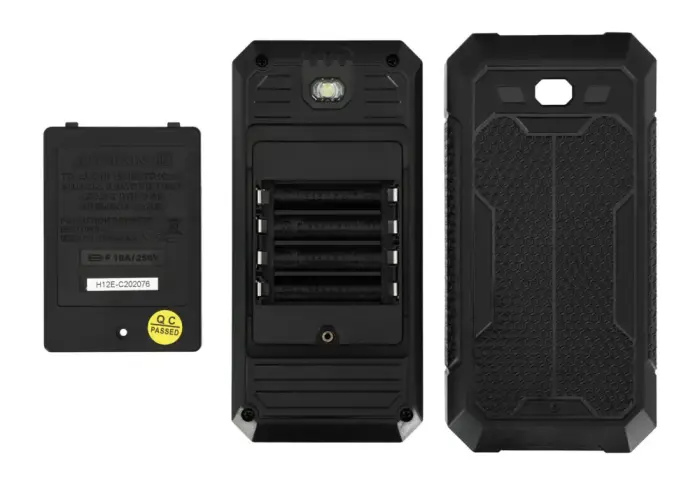

- Powered by standard batteries

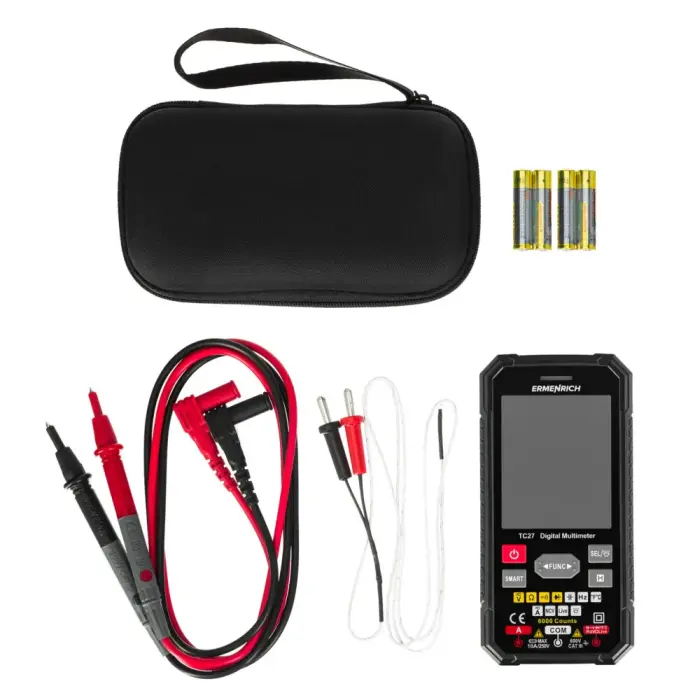

The kit includes:
- Digital multimeter
- Probes

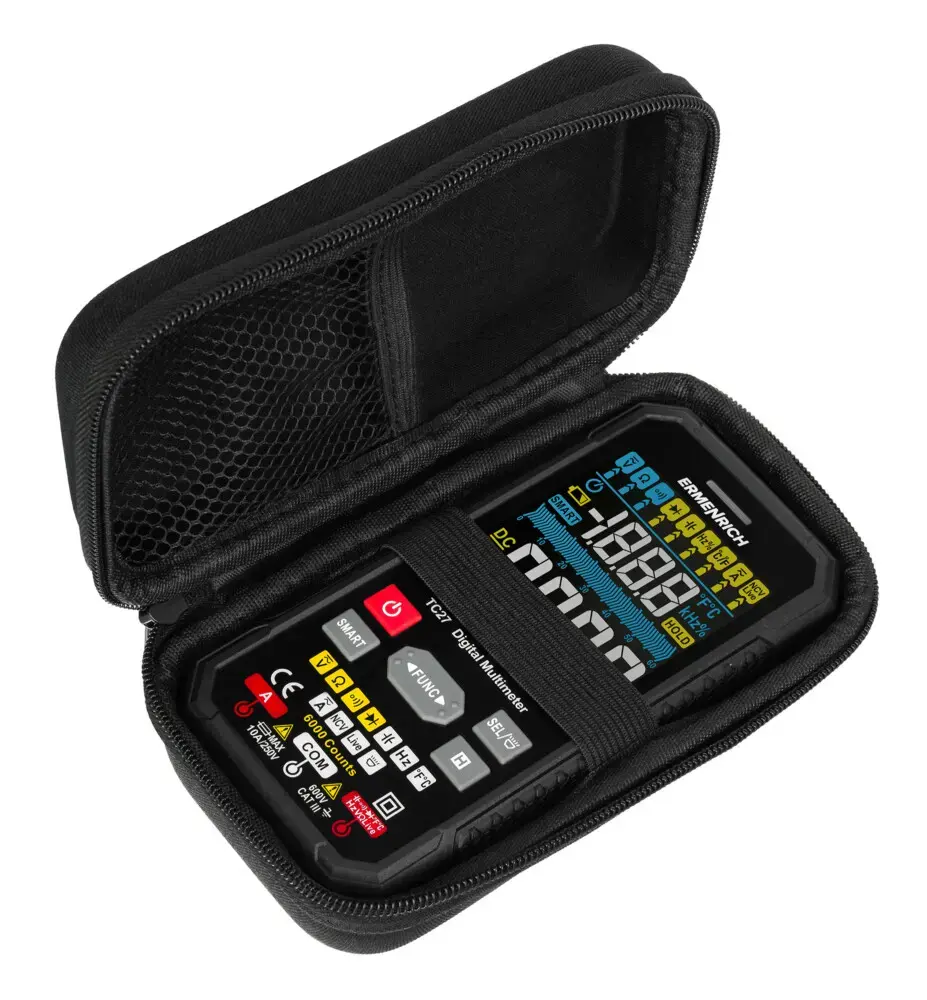

- Pouch
- User manual and warranty card
BrandErmenrichWarranty5 летEAN5905555017679Package size (LxWxH)17x9x6 cmShipping Weight0.4 kgSelection of the measuring limitautomaticBasic functions voltmeter, ammeter, ohmmeter, capacitance meter, frequency meter, duty cycle meter, thermocoupleDC voltage measuring limit60mV/600mV/6V/60V/600V: error ±(0.5%+3)AC voltage measuring limit6/60/600V: error ±(0.8%+3)DC current measuring limit600mA/10A: error ±(1.2%+3)AC current measuring limit600mA/10A: error ±(1.5%+3)Resistance measuring limit600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ: error ±(1.0%+3)Capacity measuring limit6nF/60nF/600nF/6µF/60µF/600µF/6mF: error ±(3.0%+5)Frequency measurement limits60Hz/600Hz/6kHz/60kHz/600kHz/6MHz/10MHz: error ±(1.0%+3)Duty cycle measurement range1–99%: error ±(3.0%+3)Diode test+ (0–3V)Non-contact voltage detection (NCV)yesTrue RMS yesHold functionyesAutomatic recognition function (Smart)+ (only for DC and AC voltage, resistance and continuity)Phase detector (Live)yesOvervoltage categoryCAT III 600VDisplayVADisplay counts6000Display backlightyesGraphic scaleyesFlash lightyesSafety standardsEN61010-1,-2-030; EN61010-2-033; EN61326-1Operating temperature range,°C−40... +1000 (−40... +1832): error ±(1.0%+3)Continuity test+, combined with resistance measurement mode (
